Where SH 200
performs
SCALE: MIN 1 — 5 MAX
USES
General & structural concrete repairVertical and horizontal trowel
PACKAGING
25 kg Kraft Paper bag1,024 bags / container
COLORS
Grey
SHELF LIFE
6–12 months
COVERAGE
16 kg/m² at 10 mm thickness
SPECIAL OFFER
OEM / ODM possible
SH 200 produces high early and ultimate strengths without intermediate or latent shrinkage. It remains stable without failure under compressive loading, impact, lateral thrusts, high heat or continuous vibration — scientifically proportioned and ready for use at consistencies from plastic to fluid.
Structural Repair & Anchoring
General and structural concrete repair, doweling and anchoring, industrial grouting, formed work, vertical and horizontal trowel applications. Ideal for airport, highway, industrial and marine applications.
Baseplates & Equipment
Grouting under baseplates, columns and equipment not subjected to heavy impact or vibratory load. Grout jacking of concrete slabs, grouting of anchor bolts, underpinning of structures.
Voids & Post-Tensioning
Grouting holes or cracks in concrete, void backfilling in tunnels, grouting of post-tensioned structural sections.
The numbers
behind SH 200
SOURCE: ITOS SH 200 TECHNICAL DATA SHEET (V1.7) — DOWNLOAD FULL TDS

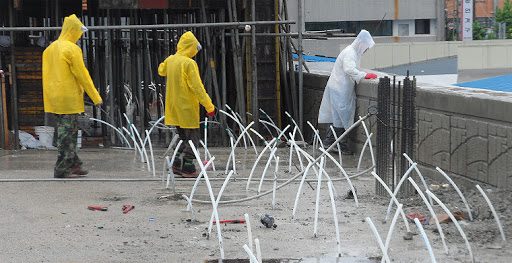

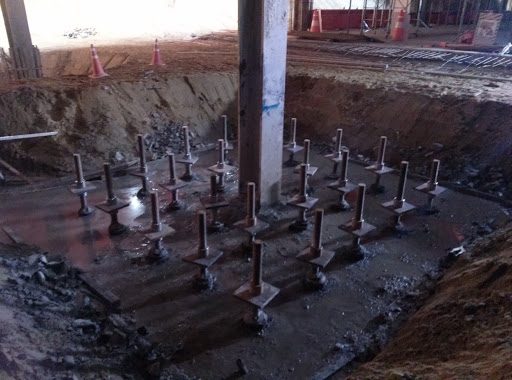

SH 200 on site
Specific Mixture for SH 200 — OEM / ODM
ITOS Co., Ltd. shares our know-how and mixing ratio with partners through overseas base partners, providing services to complete the product using the mixture we supply plus Portland cement and silica sands — common ingredients that are easy to purchase locally. Your company can maximize local sales revenue and deliver customized products to end-users by saving logistics costs and gaining competitive pricing. We support all of this with consulting on mixing ratios and mixing equipment. Each formula is the result of more than 20 years of work by our researchers to make the best use of the right materials.
- Launch a variety of products under your own brand.
- With our factory and research institute, receive products optimized for the desired properties and site conditions in a short period of time.
- Build on materials underpinning Korea's world-renowned construction technology to strengthen your company's image.
SH 200 — Q&A
How much water do I mix with SH 200?
For grouting consistency, mix approximately 4–4.5 liters of water per 25 kg bag (16–18 % by weight). For plastering, use 3–3.5 liters (12–14 %). Mix with a drill and paddle at max 500 rpm.
Can SH 200 be poured in thick sections?
Yes. For thicknesses over 100 mm, add 10 % by weight of uniformly graded 6 mm pea gravel per bag.
How strong does SH 200 get?
Compressive strength reaches 20.7 MPa in 1 day, 45 MPa in 7 days and 62 MPa at 28 days — with a height change of only 0–0.2 mm (non-shrink).
What is the coverage of SH 200?
Grouting works consume approximately 2 kg of powder per liter of mortar; repair works consume 16 kg/m² at 10 mm thickness.
How should SH 200 be cured?
Protect and cure immediately after placement: cover with clear plastic, damp rags or burlap for 72 hours and do not let them dry out.
How is it packaged for export?

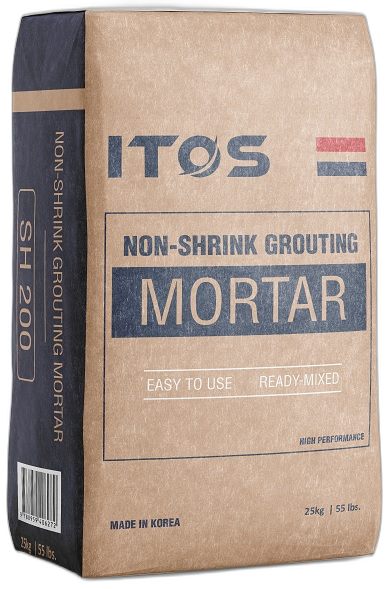

In 25 kg kraft paper bags — 64 bags (1,600 kg) per plastic-wrapped pallet, and 1,024 bags (25.6 MT) per 20-ft container. Shelf life is 6–12 months unopened, stored cool and dry away from direct sunlight.
Can the formula be customized (OEM / ODM)?
Yes. ITOS can adjust the specification to your requirements and supply the product under your own brand, including packaging. Cured samples are shipped worldwide for testing before you commit.
Test SH 200 before you trust it.
CURED SAMPLES SHIPPED WORLDWIDE — SPEC SHEETS INCLUDED
