Where SH 100
performs
SCALE: MIN 1 — 5 MAX
USES
General Concrete StructureWater Treatment · Underground Structure
PACKAGING
25 kg Kraft Paper bag1,024 bags / container
COLORS
Grey
SHELF LIFE
6–12 months
COVERAGE
1.35 m² at 10 mm thickness
SPECIAL OFFER
OEM / ODM possible
It is easily applied using a continuous plastering machine and is suitable for large surfaces such as drainage channels, dams, bridges, water pipes, tanks, and containment structures made of reinforced concrete.
General Concrete Structure
Concrete floor repair works, road median strips, gutter drainage, passage boxes, drainage facilities, bridge decks, abutments, piers, foundations, overpass barriers, slabs, beams, columns — any structure that requires repair and reinforcement of concrete.
Water Treatment Structure
Reservoirs that require ozone resistance in water purification plants, sewage treatment plants, water reservoirs at sewage and wastewater treatment plants, industrial sewage culverts, dams and drainage deck gates, agricultural waterways, port facilities, swimming pools — structures under long-term exposure to chemical erosion, seawater or fresh water.
Underground Structure
Underground roadways, underground utility districts, underground reservoirs, raw-material storage tanks, distribution reservoirs — structures requiring countermeasures against high resistance and vibration.
The numbers
behind SH 100
SOURCE: ITOS SH 100 TECHNICAL DATA SHEET (V1.7) — DOWNLOAD FULL TDS

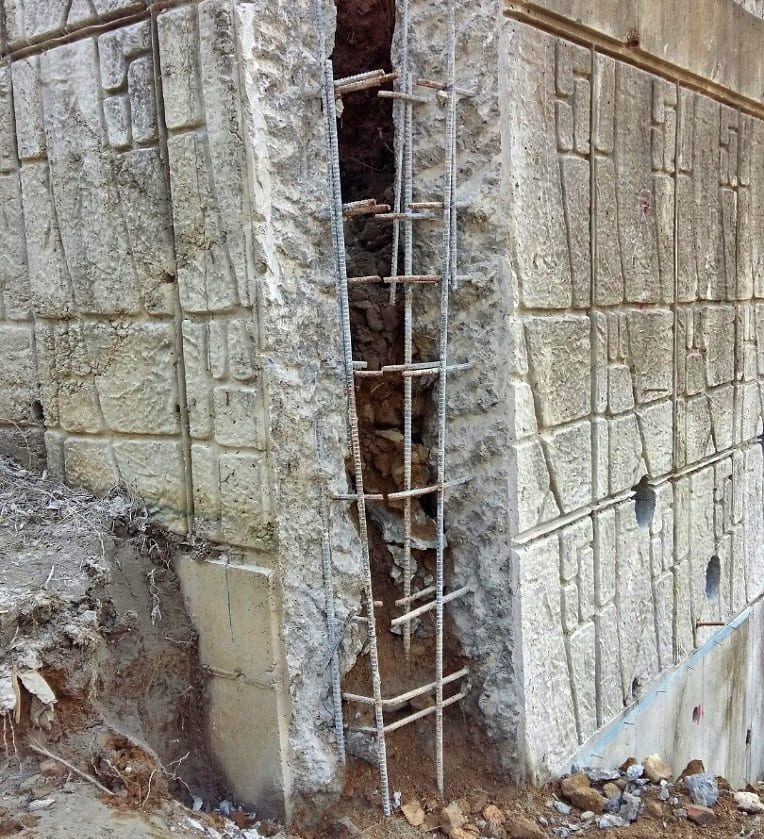

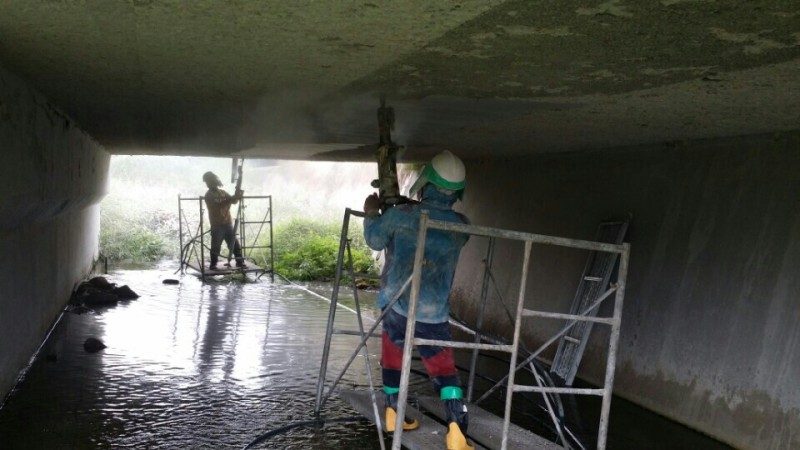

SH 100 on site
Specific Mixture for SH 100 — OEM / ODM
ITOS Co., Ltd. shares our know-how and mixing ratio with partners through overseas base partners, providing services to complete the product using the mixture we supply plus Portland cement and silica sands — common ingredients that are easy to purchase locally. Your company can maximize local sales revenue and deliver customized products to end-users by saving logistics costs and gaining competitive pricing. We support all of this with consulting on mixing ratios and mixing equipment. Each formula is the result of more than 20 years of work by our researchers to make the best use of the right materials.
- Launch a variety of products under your own brand.
- With our factory and research institute, receive products optimized for the desired properties and site conditions in a short period of time.
- Build on materials underpinning Korea's world-renowned construction technology to strengthen your company's image.
SH 100 — Q&A
How much water do I mix with SH 100?
For manual application, mix approximately 5–6 liters of clean water per 25 kg bag. Mix 2–3 minutes with a drill and spiral paddle (400–600 rpm), let it sit 1–2 minutes, then briefly remix before placement. It can also be applied by plastering machine.
What is the coverage of SH 100?
One 25 kg bag yields 13.5 liters of mortar and covers 1.35 m² at 10 mm thickness.
What thickness can SH 100 be applied at?
Minimum application thickness is 10 mm. For thicknesses above 30 mm, use reinforcement anchored at an adequate distance from the substrate.
How fast does SH 100 gain strength?
Initial set is 30 minutes and final set 60 minutes. Compressive strength reaches 17.2 MPa in 1 day and 42.1 MPa at 28 days.
What is the application temperature range?
Apply between 5 °C and 30 °C. Do not use in strong wind, rain or direct sunlight, or on frozen, dusty or unstable surfaces.

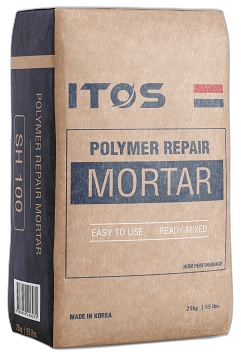

How is it packaged for export?
In 25 kg kraft paper bags — 64 bags (1,600 kg) per plastic-wrapped pallet, and 1,024 bags (25.6 MT) per 20-ft container. Shelf life is 6–12 months unopened, stored cool and dry away from direct sunlight.
Can the formula be customized (OEM / ODM)?
Yes. ITOS can adjust the specification to your requirements and supply the product under your own brand, including packaging. Cured samples are shipped worldwide for testing before you commit.
Test SH 100 before you trust it.
CURED SAMPLES SHIPPED WORLDWIDE — SPEC SHEETS INCLUDED
